การตรวจสอบสภาพการสั่นสะเทือนด้วยวิธีพื้นฐานในการประเมินสภาพของเครื่องจักร เรียนรู้เกี่ยวกับประโยชน์ของการอ่านการสั่นสะเทือน และขั้นตอนในการระบุสาเหตุหลัก
วัตถุประสงค์หลักของการตรวจสอบสภาพการสั่นสะเทือนคือการใช้วิธีที่ใช้ข้อมูลเพื่อประเมินสภาพเครื่องจักร (data-driven decision)2 ช่วยป้องกันการหยุดทำงาน (unplanned downtime) และวางแผนการซ่อมบำรุง เป้าหมายคือหลีกเลี่ยงการ maintenance ที่มากเกินไปในขณะที่มั่นใจว่าจะไม่มี unplanned downtime

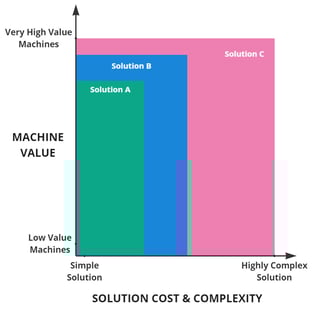

ประโยชน์หลักของการอ่านการสั่นสะเทือน แบบ Solution A คือความสามารถในการตัดสินใจโดยใช้ข้อมูลที่แม่นยำแทนที่จะใช้วิจารณญาณของคน ซึ่งทำให้มั่นใจได้ถึงกลยุทธ์การบำรุงรักษาที่น่าเชื่อถือและมีประสิทธิภาพมากขึ้น วิธีนี้มีต้นทุนต่ำที่สุด โดยใช้เซ็นเซอร์การสั่นสะเทือนที่เชื่อมต่อกับมอเตอร์เพื่อรับค่าการสั่นสะเทือนและอุณหภูมิ

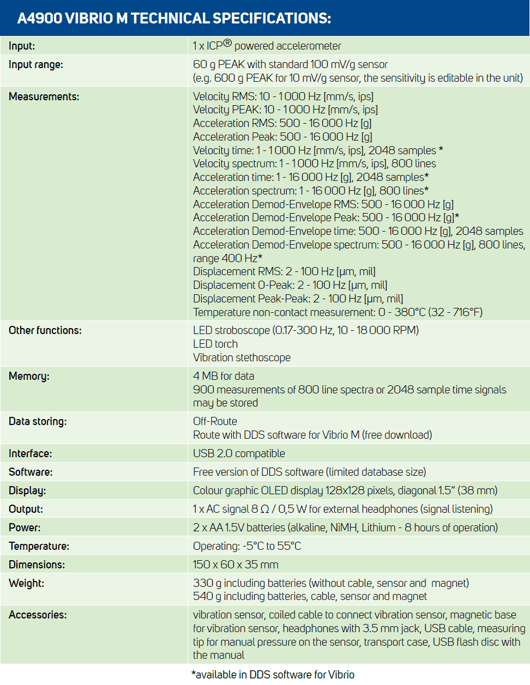

การตรวจสอบสภาพเครื่องจักรแบบดั้งเดิมมักจะทำโดยใช้เครื่องวัดการสั่นสะเทือนแบบพกพา เช่น ADASH A4900 Vibrio M ต่อไปนี้คือภาพรวมของแนวทางปฏิบัติทั่วไปและการกระจายตลาด:
ส่วนใหญ่ของบริษัท:
ผู้ใช้งานระดับกลาง:
ผู้ใช้ระบบขั้นสูง:

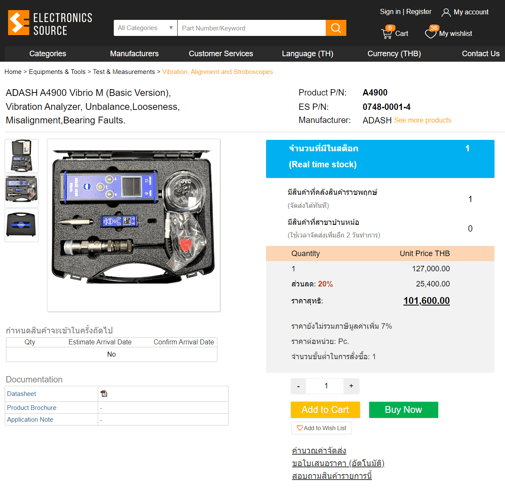

ตัวอย่างของ Vibration Meter. ราคา ฿100,000 - ฿160,000
การตรวจสอบสภาพเครื่องจักรโดยใช้เครื่องวัดการสั่นสะเทือนแบบพกพาแม้จะมีข้อดี แต่บ่อยครั้งไม่สม่ำเสมอ ใช้เวลามาก และมีต้นทุนสูง เพื่อเป็นทางเลือก การใช้โซลูชันการตรวจสอบการสั่นสะเทือนและอุณหภูมิที่ติดตั้งถาวรกับเครื่องจักรมีประโยชน์อย่างมาก
ระบบ Vibration Monitoring Solution ให้ค่าจริงแบบเรียลไทม์และข้อมูลประวัติ ทำให้สามารถตรวจสอบอย่างต่อเนื่องและตรวจจับความผิดปกติได้ทันที ด้วยเซ็นเซอร์ถาวร วิศวกรซ่อมบำรุงสามารถรับการแจ้งเตือนทันที ตัดสินใจโดยใช้ข้อมูล และวางแผนการบำรุงรักษาให้ตรงเวลา ความสม่ำเสมอในการเก็บข้อมูลช่วยขจัดข้อผิดพลาดของคน นำไปสู่การประเมินสภาพเครื่องจักรที่แม่นยำยิ่งขึ้น
การวิเคราะห์ข้อมูลประวัติสามารถเผยให้เห็นแนวโน้มระยะยาวและคาดการณ์การเสียหายในอนาคต ทำให้กลยุทธ์การบำรุงรักษาเชิงพยากรณ์ดีขึ้น วิธีนี้ไม่เพียงแต่ลด Downtime แต่ยังยืดอายุการใช้งานของเครื่องจักร ส่งผลให้ประหยัดค่าใช้จ่ายโดยรวมและเพิ่มประสิทธิภาพการดำเนินงาน

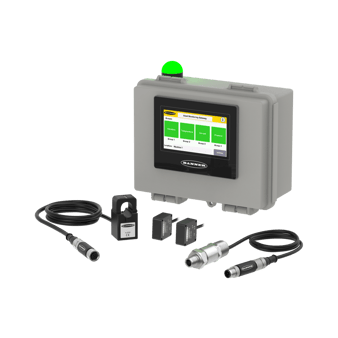

ตัวอย่างระบบ Stand Alone จาก Banner Engineering
สำหรับการประเมินสภาพเครื่องจักรเบื้องต้นที่มีประสิทธิภาพ ค่าที่จำเป็นในการวัดประกอบด้วย:
วัตถุประสงค์: ตรวจจับความร้อนที่ผิดปกติ ซึ่งอาจบ่งบอกถึงปัญหา เช่น การหล่อลื่นที่ไม่เหมาะสม การเสียดสีมากเกินไป ปัญหาทางไฟฟ้า หรือการเสียหายของตลับลูกปืน
การแปลผล: การเพิ่มขึ้นของอุณหภูมิเป็นสัญญาณของความผิดปกติที่ต้องได้รับการแก้ไขทันที การตรวจสอบอย่างต่อเนื่องช่วยในการสังเกตการเพิ่มขึ้นทีละน้อยซึ่งอาจบ่งบอกถึงสภาพที่เสื่อมโทรม

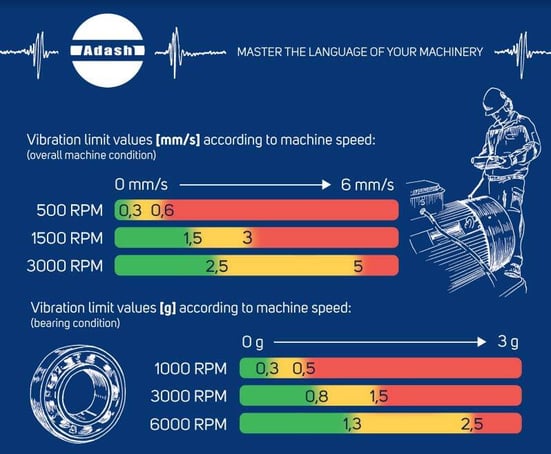

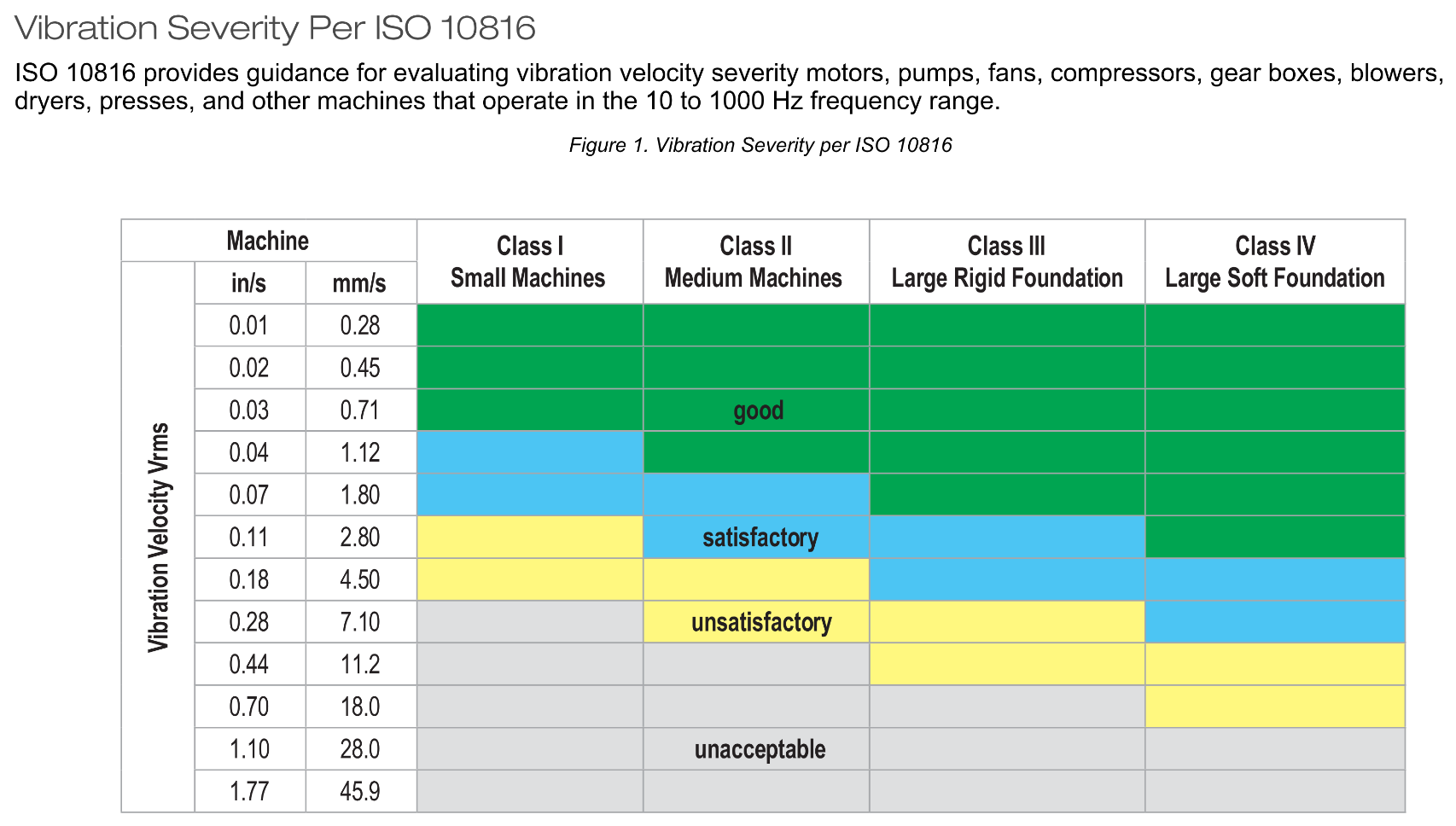

วัตถุประสงค์: ประเมินความรุนแรงของการสั่นสะเทือนโดยรวมและเปรียบเทียบกับมาตรฐาน ISO 10816
การแปลผล:
วางแผนการซ่อมบำรุงถ้าเป็น Unsatisfactory และ ทำการซ่อมบำรุงทันทีถ้าเป็น Unacceptable.
วัตถุประสงค์: วัดแรงของการสั่นสะเทือน สำคัญสำหรับการตรวจจับการกระแทกที่ความถี่สูง เช่น ข้อบกพร่องของตลับลูกปืนหรือปัญหาฟันเฟือง
การแปลผล:
ตัวอย่าง Motor 50Hz 3,000RPM
QM30VT | WISE-2410 |
Wired | Wireless |
10 - 4,000 Hz | 10 - 1,000Hz, |
RMS Velocity 10 - 1,000Hz | RMS Velocity 10 - 1,000Hz |
Peak Velocity Frequency | - |
Peak Velocity 10 - 1,000Hz | - |
RMS Acceleration 10 - 1,000 Hz | RMS Acceleration 10 - 1,000 Hz |
RMS Acceleration 1,000 - 4,000 Hz | - |
2 - axis | 3 - axis |
Kurtosis, Crest Factor | Kurtosis, Crest Factor |

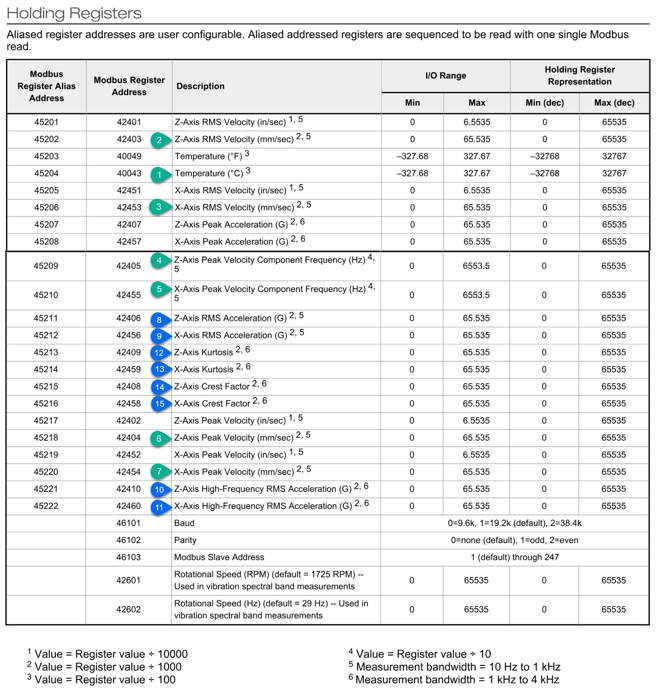

Banner Engineering Vibration Sensor Datasheet

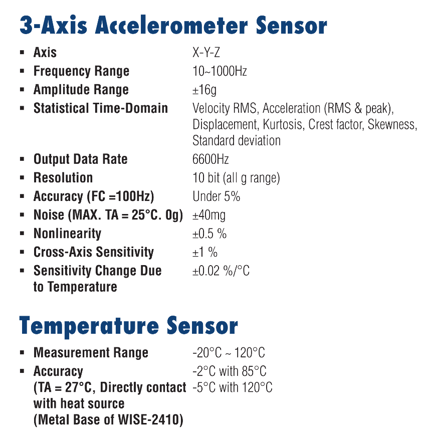

Advantech Sensor Datasheet

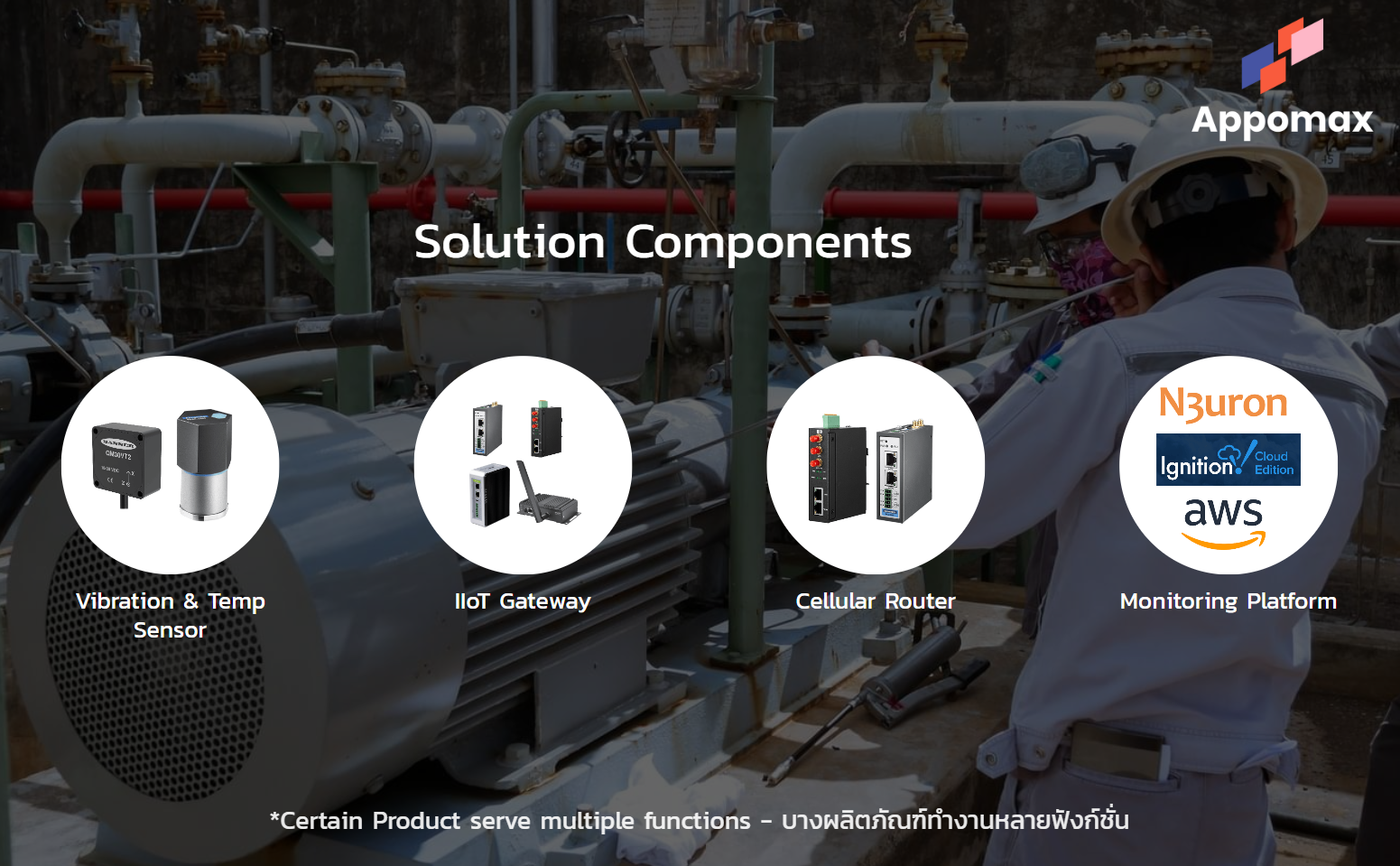

IIoT Gateway มีความสำคัญสำหรับการตรวจสอบทางอุตสาหกรรมที่มีประสิทธิภาพ โดยมีวัตถุประสงค์หลักดังนี้:
Example of Hardware and software used:
Used for providing the internet connection to the AWS Cloud Infrastructure
Hosted on-premise or in the cloud system.
The primary purpose of vibration condition monitoring is to use a data-driven approach to determine the machine's condition. This helps prevent downtime and allows for timely maintenance planning. The goal is to avoid over-maintenance while ensuring there are no unplanned downtimes.
The key benefit of using general vibration readings is making accurate, data-driven decisions instead of relying on human intuition. This ensures a more reliable and efficient maintenance strategy. This method involves the lowest cost setup, utilizing vibration sensors that connect to the motor to take both vibration and temperature readings.
Traditionally, condition monitoring of machines is often conducted using portable handheld vibration meters, such as the ADASH A4900 Vibrio M. Here’s an overview of the common practices and market distribution:
Majority of Companies:
Intermediate Adopters:
Advanced Users:
While traditional condition monitoring using portable handheld vibration meters like the ADASH A4900 Vibrio M has its advantages, it is often inconsistent, time-consuming, and relatively high in cost.
As an alternative, implementing a permanent vibration and temperature condition monitoring solution that is consistently attached to machines offers significant benefits. This advanced system provides real-time value and historical data, enabling continuous monitoring and immediate detection of abnormalities. With permanent sensors, maintenance engineers can receive instant alerts, make data-driven decisions, and plan timely maintenance interventions. The consistency of data collection eliminates human error and variability, leading to more accurate assessments of machine health.
Furthermore, historical data analysis can reveal long-term trends and predict potential failures, enhancing predictive maintenance strategies. This approach not only reduces unplanned downtime but also extends the lifespan of machinery, resulting in overall cost savings and improved operational efficiency.
For a comprehensive initial assessment of machine conditions, the following readings are essential:
Surface Temperature:
RMS Velocity at 10 - 1,000 Hz:
RMS Acceleration at 10 - 1,000 Hz:
Consistently monitoring these parameters provides a comprehensive overview of machine health. Surface temperature helps detect thermal issues, RMS velocity assesses general vibration severity against ISO standards, and RMS acceleration identifies high-frequency faults. Together, these readings allow for accurate, data-driven maintenance decisions, ensuring machine reliability and longevity.
IIoT Gateway is crucial for efficient and effective industrial monitoring. Its primary purposes include:
Data Acquisition from Sensors:
Protocol Conversion to Monitoring Systems:
Data Calculation:
